Robot-ka gaadiidka SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

Soo bandhigid kooban oo ku saabsan badeecada

Robot-yada warshadaha gaadiidka waxaa inta badan loo isticmaalaa shiididda, nadiifinta, rarista iyo ka saarista qalabka mashiinka, gaadiidka otomaatiga ah ee loogu talagalay shaambadaynta khadadka wax soo saarka otomaatiga ah, iwm. Robot-ka gaadiidku waa badeeco otomaatig ah oo adeegsata wadada dhaqdhaqaaqa robot-ka si loogu beddelo gaadiidka gacanta. Faa'iidada ay leedahay ayaa ah inuu fulin karo dhammaan noocyada hawlaha la filayo isagoo barnaamijinaya. Waxay isku daraysaa faa'iidooyinka aadanaha iyo mashiinka labadaba qaab-dhismeedkiisa iyo waxqabadkiisa, gaar ahaan muujinta sirdoonka macmalka ah iyo la qabsiga.

NALA SOO XIRIIR

Faahfaahinta Badeecada

Calaamadaha Alaabta

Halbeegyada Farsamada

Lambarka Moodeelka		Heerka Xorriyadda	Habka wadista	Culayska shaqada (kg)	Saxnaanta booska ee soo noqnoqda (mm)	Kala duwanaanshaha dhaqdhaqaaqa (°)						Xawaaraha ugu badan (°/s)						Wareegga ugu badan ee la oggol yahay (N. m)			Radius-ka dhaqdhaqaaqa (mm)	Miisaanka Deaa (kg)
Lambarka Moodeelka		Heerka Xorriyadda	Habka wadista	Culayska shaqada (kg)	Saxnaanta booska ee soo noqnoqda (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Radius-ka dhaqdhaqaaqa (mm)	Miisaanka Deaa (kg)
SDCX-RB03A1		6	Darawalka AC servo	3	±0.02	±150	+136~-51	+64~-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
SDCX-RB06-900		6	Darawalka AC servo	6	±0.03	±170	+135~100	+155~110	±170	±120	±360	337.5	270	375	300	375	468	12	10	6	900	60
SDCX-RB08		6	Darawalka AC servo	8	±0.05	±170	+120~-85	+75~-155	±180	±135	±360	154	154	154	420	252	620	14	12	7	1389	180

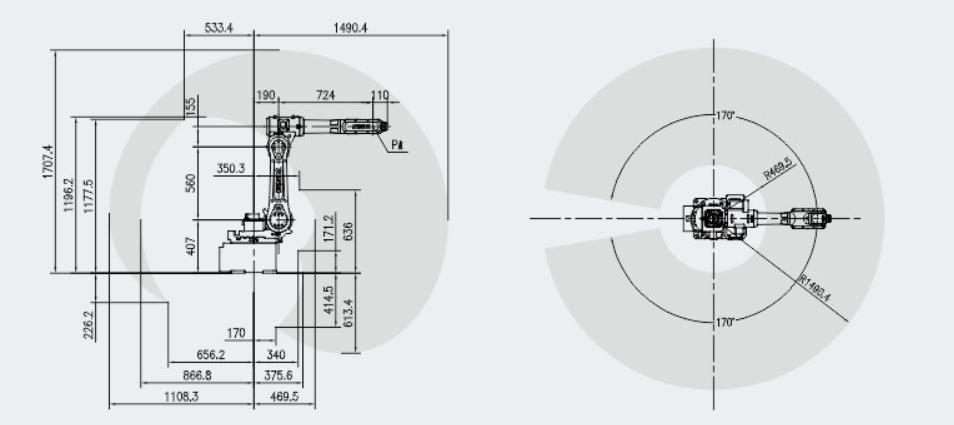

SDCX-RB08A3-1490		6	Darawalka AC servo	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	200	200	200	400	356	600	14	12	7	1490	185

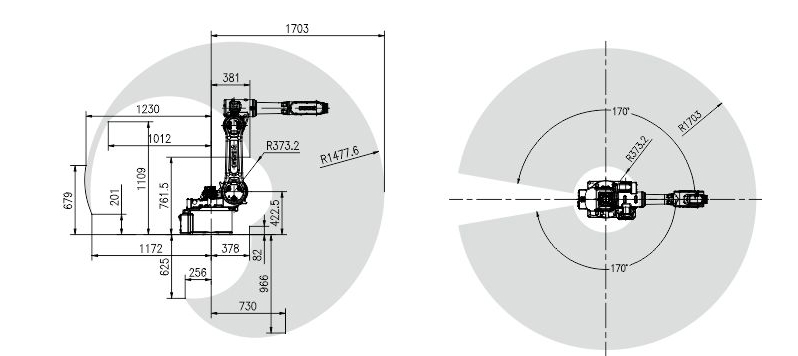

SDCX-RB08A3-1700		6	Darawalka AC servo	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	180	180	180	400	356	600	14	12	7	1700	187
SDCX-RB08A3-1840		6	Darawalka AC servo	6	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	160	160	160	400	356	600	14	12	7	1840	180
SDCX-RB10		6	Darawalka AC servo	10	±0.05	±170	+150~-85	+85~-170	±360	±120	±360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240
Taxanaha SDCX-RB20	SDCX-RB06-2060	6	Darawalka AC servo	6	±0.05	±170	+145~-100	+75~-165	±180	±135	±360	165	165	170	300	356	600	40	12	7	2060	285
	SDCX-RB15L	6	Darawalka AC servo	15	±0.05	±170	+145~-100	+75~-165	±180	±133	±360	165	165	170	300	198	394	40	50	22	1794	300
	SDCX-RB20	6	Darawalka AC servo	20	±0.05	±170	+132~-95	+73~-163	±180	±133	±360	165	165	170	300	198	394	40	50	22	1595	290
SDCX-RB50		6	Darawalka AC servo	50	±0.05	±178	+130~-90	+75~-200	±360	±115	±360	171	171	171	215	251	365	196	196	127	1956	600

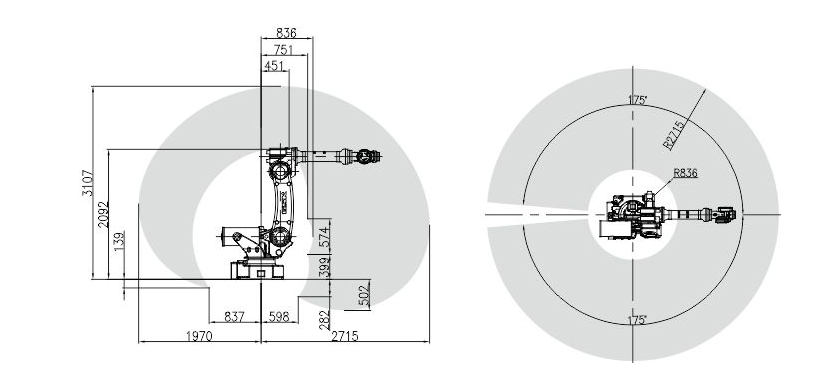

SDCX-RB130		6	Darawalka AC servo	130	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	165	174	238	951	951	490	2715	1420
SDCX-RB165		6	Darawalka AC servo	165	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	152	160	220	951	951	490	2463	1400
SDCX-RB210		6	Darawalka AC servo	210	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	144	118	200	1274	1274	686	2463	1430
SDCX-RB300		6	Darawalka AC servo	300	±0.20	±175	±55	+116~-85	±360	±115	±360	85	95	95	120	120	180	1274	1274	686	2508	1500

Ka fogow taabashada gaasaska iyo dareerayaasha guban kara, qarxa iyo kuwa wax guban kara; Ha ku shubin biyo, saliid iyo boor; Ka fogow ilaha buuqa korontada (plasma)
